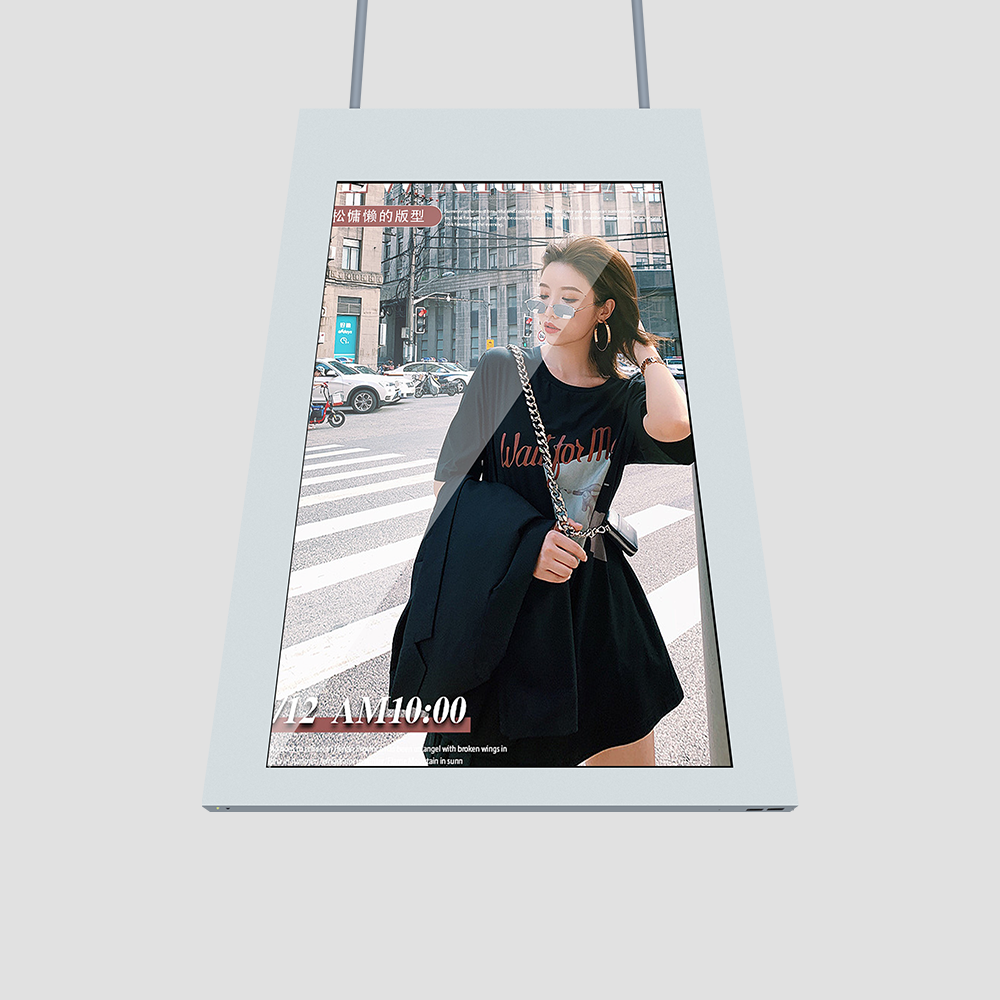

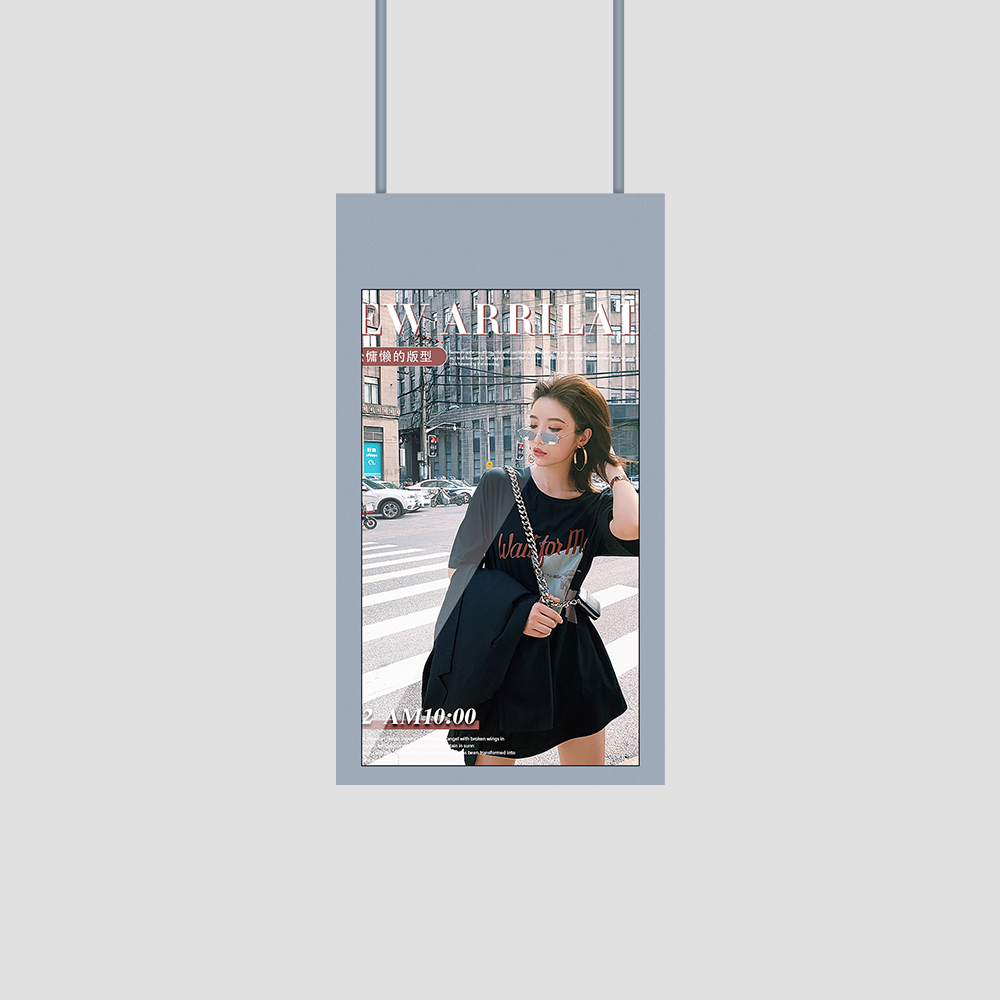

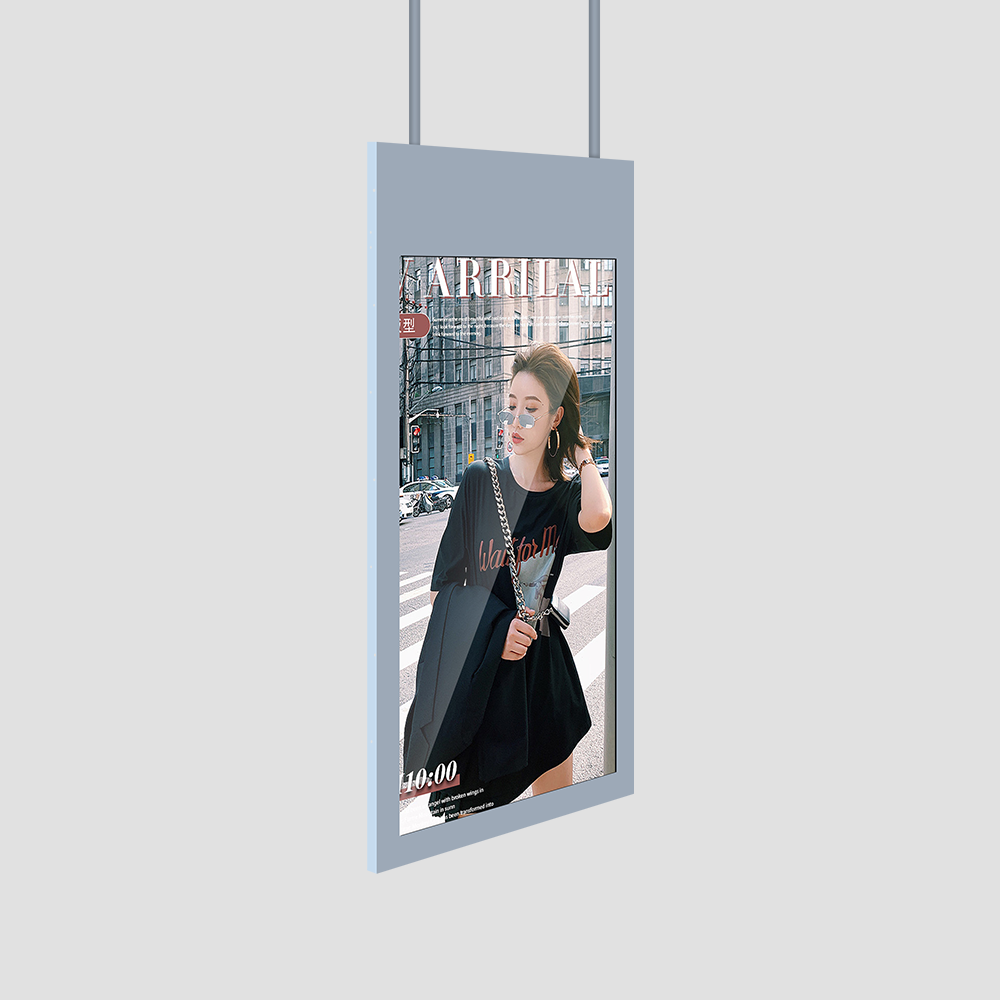

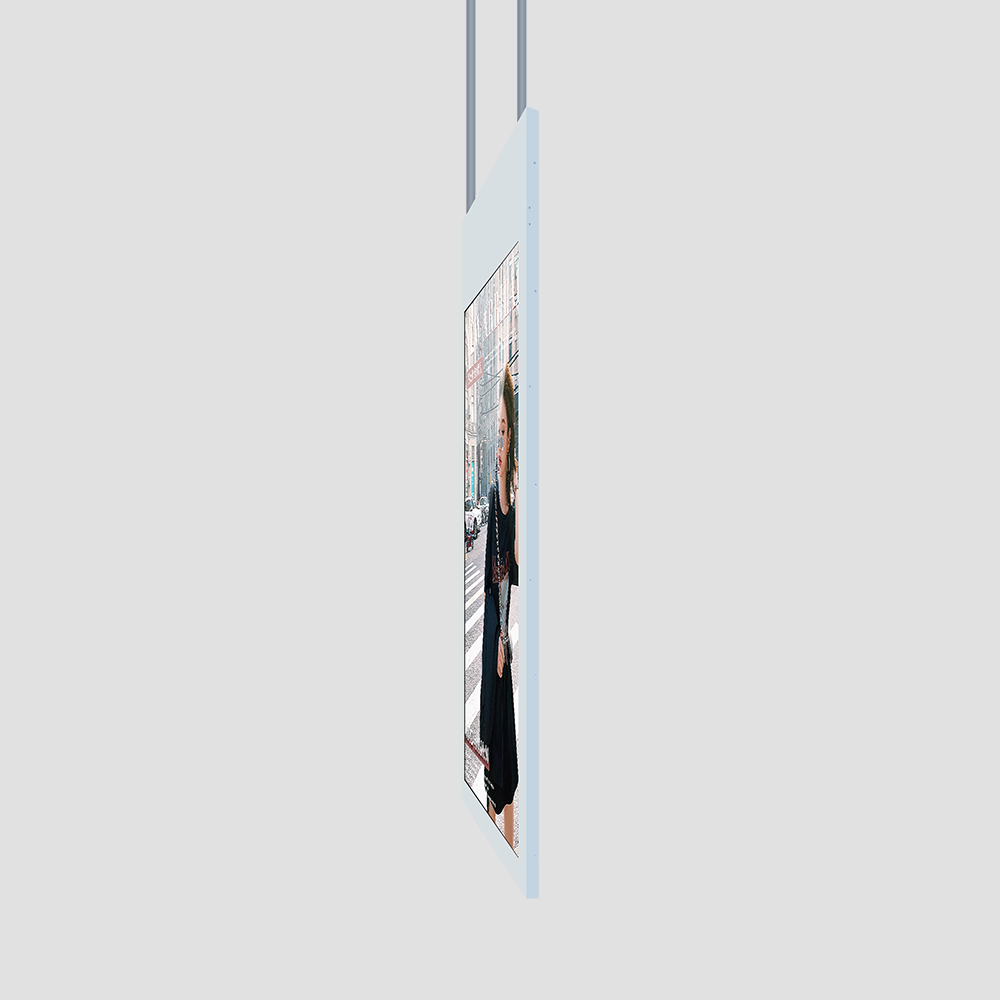

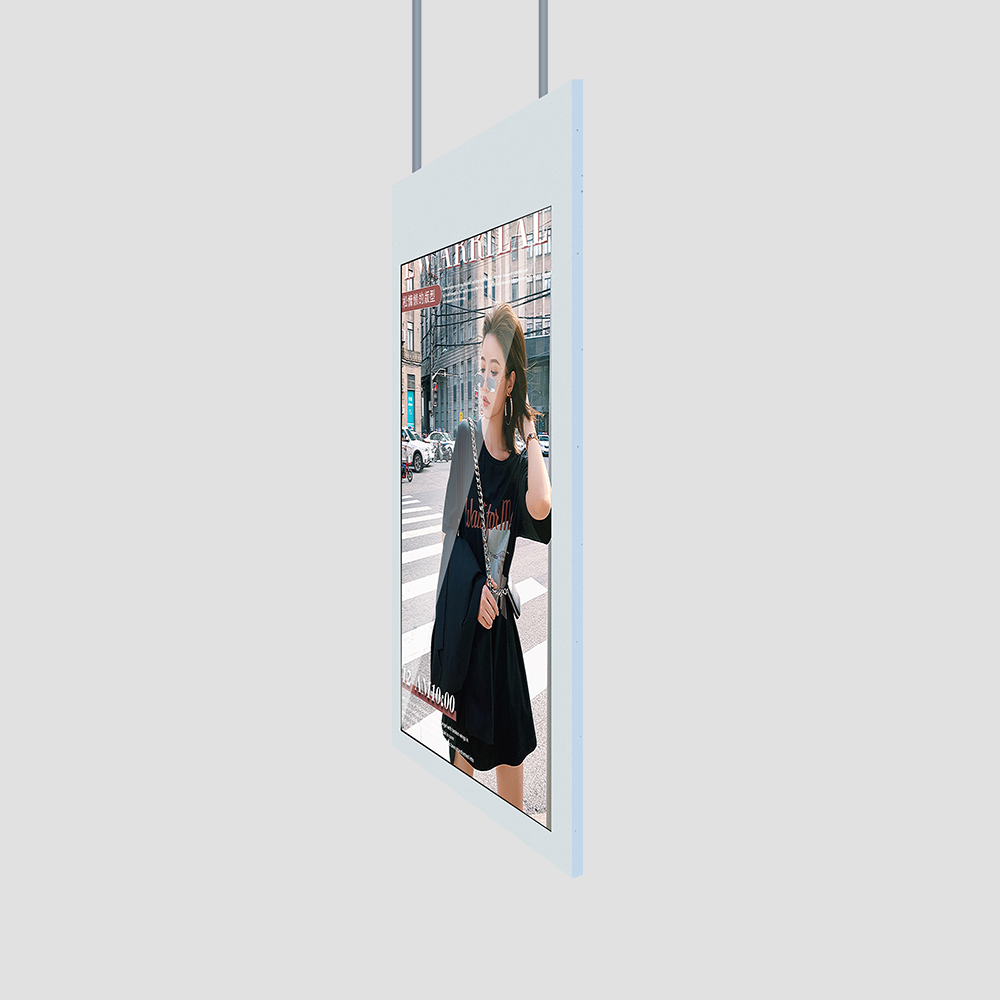

High Brightness Double Sided LCD Display

Register as member to view prices

MOQ: 5 Sets

Produce Period: 5-10 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou,Hongkong

Price terms: EXW,FOB,CIF,DDP,DDU

Payment Terms: Bank T/T transfer,Western Union

INQUIRY PDF Format

Description

>>Product key features:
1, Original LG panel , one side 450nits, the other side 800nits,1920*1080 resolution,2000:1 contrast with LED backlight;
2, Special designed LED backlight modular + constant current source drive components;
3, Patented cooling structure combination of high-quality fan conditioner;
4, IP65 grade all weatherproof dust-proof enclosure, +6mm vandal-proof protective glass, +1.5mm SPCC;

5, Applications: Shopping mall, exhibition halls, hotels, restaurant, chain stores, airport, information center, end user terminals and many other places.

>>Technology Optional modules

Panel,Player Specifications
Panel Specifications	Panel type	LG IPS LCD
	Physical Resolution	1920*1080
	Display Area (mm)	1073*604
	Aspect Ratio	16:9
	Luminance(nits)	one side 450nits, the other side 800nits
	Blackening Defect Free	Up to 110°C (230°F)
	Display Colors	16.7M
	Viewing Angle	H178º/ V178º
	Contrast Ratio	1400:1
	Contrast	Typical:1100,MIN:800
	Backlit type	WLED
	Response time	6ms
	Life(hrs)	more than 60000
Audio	Speaker Type	Speaker Type
AV Inputs	Video	HDMI, DVI, DP
	Audio	Audio Socket (3.5mm)
	Power Consumption (W)	380W
Power	Input Voltage	AC110~240V (50Hz~60Hz)
Power	Unit Size (WxHxD mm)	112565695
Mechanical	VESA Holes (mm)	580*300 M8
Environmental	Operating Temperature	-20°C to 70°C
	Storage Temperature	-30°C to 60°C
	Operating Humidity	Operating Humidity 10% to 80%
	Storage Humidity	5% to 95%

*For more technical and commercial contact, welcome contact with our distributor or overseas sales
*All technical specification, designs and photos subject to change without notice
