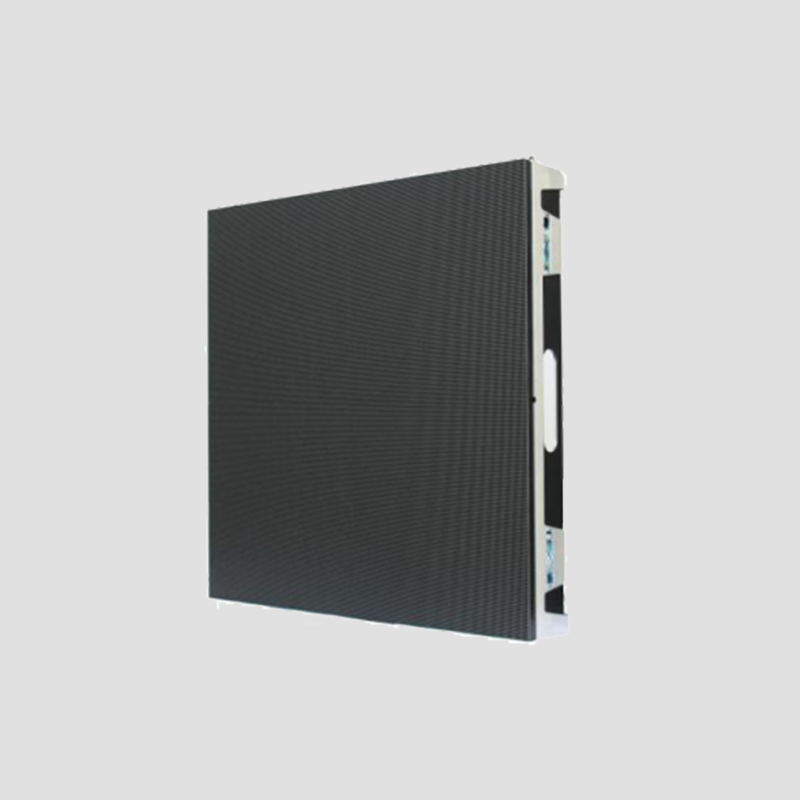

P1.57 P1.667 P1.875 P2 P2.5 indoor hd led video wall with front maintenance

Register as member to view prices

MOQ: 1 Sets

Produce Period: 15-20 days

Supply Ability: 1000 Sets per Month

Nearest Port: Shenzhen,Guangzhou,Hongkong

Price terms: EXW,FOB,CIF,DDP,DDU

Payment Terms: Bank T/T transfer,Western Union

INQUIRY PDF Format

Description

>>Key features:

The world’s leading technology of low brightness and high grayscale,5000:1 contrast ratio and low power consumption;
3840Hz refresh rate,real and natural high dynamic display,no block shadow;
Wide color gamut,uniform color,fine and soft picture with no rainbow effect;

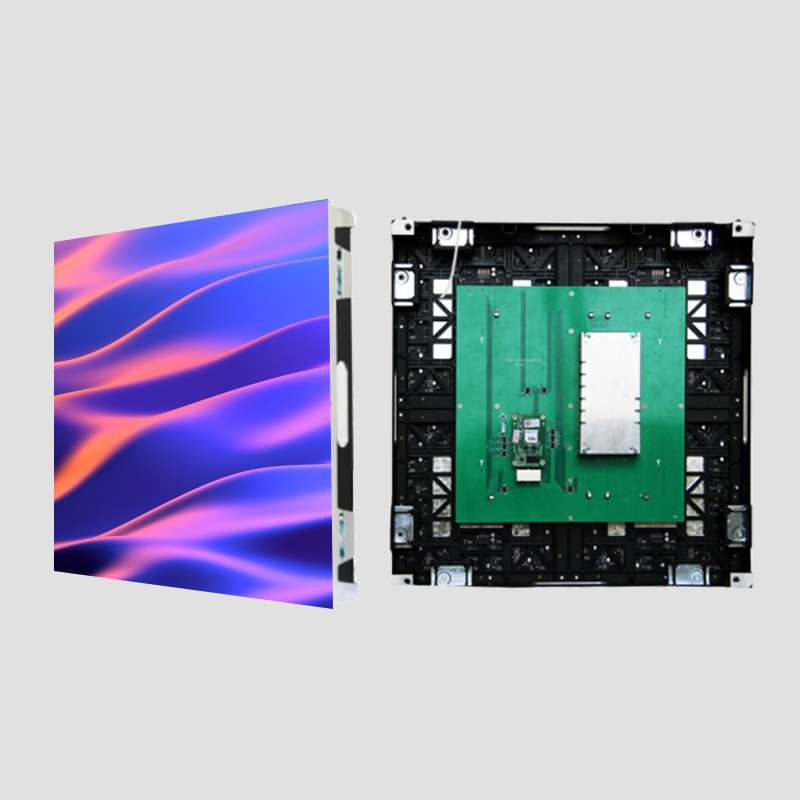

Die-casting aluminum design,CNC finishing,seamless without frame,infinite splicing;
Metal for heat dissipation,ultra-quiet fan-free design;

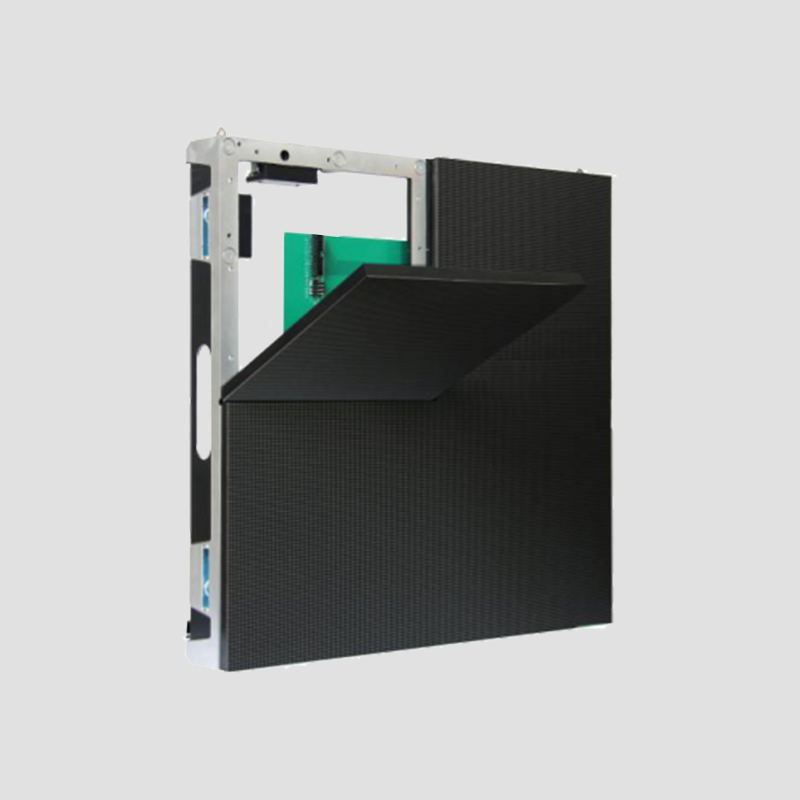

Full front maintenance and high-precision adjustment;
Optional power supply,signal double backup function.

>>Specifications

*HD screen 480480 series**
Model NO.	P1.57	P1.667	P1.875	P2	P2.5
Pixel Pitch	1.57mm	1.667mm	1.875mm	2mm	2.5mm
LED type	SMD1010	SMD1010	SMD1515	SMD1515	SMD2121
Flatness between modules	≤ 0.1mm	≤ 0.1mm	≤ 0.1mm	≤ 0.1mm	≤ 0.1mm
Pixel configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Module *size(WH)**	240*240mm	240*240mm	240*240mm	240*240mm	240*240mm
Module resolution (W*H)	152*152mm	144*144mm	128*128mm	112*112mm	96*96mm
*Cabinet size(WHD)*	48048075mm	48048075 mm	48048075 mm	48048075 mm	48048075 mm
Cabinet resolution (W*H)	304*304mm	288*288mm	256*256mm	224*224mm	192*192mm
Cabinet weight	3.5kg/pc	7kg/pc	7kg/pc	7kg/pc	7kg/pc
Density	401120dots/m²	284444dots/m²	284444dots/m²	250000dots/m²	160000dots/m²
scan	38S	35S	32S	28S	24S
IC	2153	2153	2153	2153	2153
Best viewing distance	>1.5m	>1.6m	>1.8m	>2m	>2.5m
Best viewing angle	140°/ 140°	140°/ 140°	140°/ 140°	140°/ 140°	140°/ 140°
Brightness	200-800cd/m²	200-800cd/m²	200-800cd/m²	200-800cd/m²	200-800cd/m²
Working voltage	AC：110-240V 50~60Hz	AC：110-240V 50~60Hz	AC：110-240V 50~60Hz	AC：110-240 V 50~60Hz	AC：110-240V 50~60Hz
Maximum power	≤600W/ m²	≤800W/ m²	≤800W/ m²	≤800W/ m²	≤800W/ m²
Average power consumption	100W/m² ~300W / m²	100W/m² ~300W / m²	100W/m² ~300W / m²	100W/m² ~300W / m²	100W/m² ~300W / m²
Screen temperature rise(running state)	≤ 5 degrees	≤ 5 degrees	≤ 5 degrees	≤ 5 degrees	≤ 5 degrees
Operation of Environmental Temperature/°C	-10°C~60°C	-10°C~60°C	-10°C~60°C	-10°C~60°C	-10°C~60°C
Operating Temperature	10%~90%RH No condensation	10%~90%RH No condensation	10%~90%RH No condensation	10%~90%RH No condensation	10%~90%RH No condensation
Screen color temperature	2000K～9500K	2000K～9500K	2000K～9500K	2000K～9500K	2000K～9500K
Driving method	1/32 scanning	1/32 scanning	1/32 scanning	1/32 scanning	1/32 scanning
Gray scale	16 bits	16 bits	16 bits	16 bits	16 bits
Refresh frequency	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz
IP grade	Front:IP35 Back:IP35	Front:IP35 Back:IP35	Front:IP35 Back:IP35	Front:IP35 Back:IP35	Front:IP35 Back:IP35
Continuous working time	≥7×24hrs	≥7×24hrs	≥7×24hrs	≥7×24hrs	≥7×24hrs
Lifetime	100,000hrs	100,000hrs	100,000hrs	100,000hrs	100,000hrs
Installation method	Back Frame Installation / Hoisting / Inner Arc Installation
Pixel correction	Equipped with point - by - point brightness and chromaticity correction
Control mode	Synchronization control
Control distance	Super five double stranded network cable, more than 100 meters using optical fiber transmission
Software interface	Windows XP /7/8/10
Signal input	HDMI、DVI（Extensible interface）
Cabinet material	Die-casting Alu

*All technical specification, designs and photos subject to change without notice
